Gatt Audio PM300 wzmacniacz słuchawkowy

Gatt Audio PM300 wzmacniacz słuchawkowy (bodypack).

The Gatt Audio PM300 provides a clean, clear, and easily-adjustable in-ear mix for all types of performers and musicians!

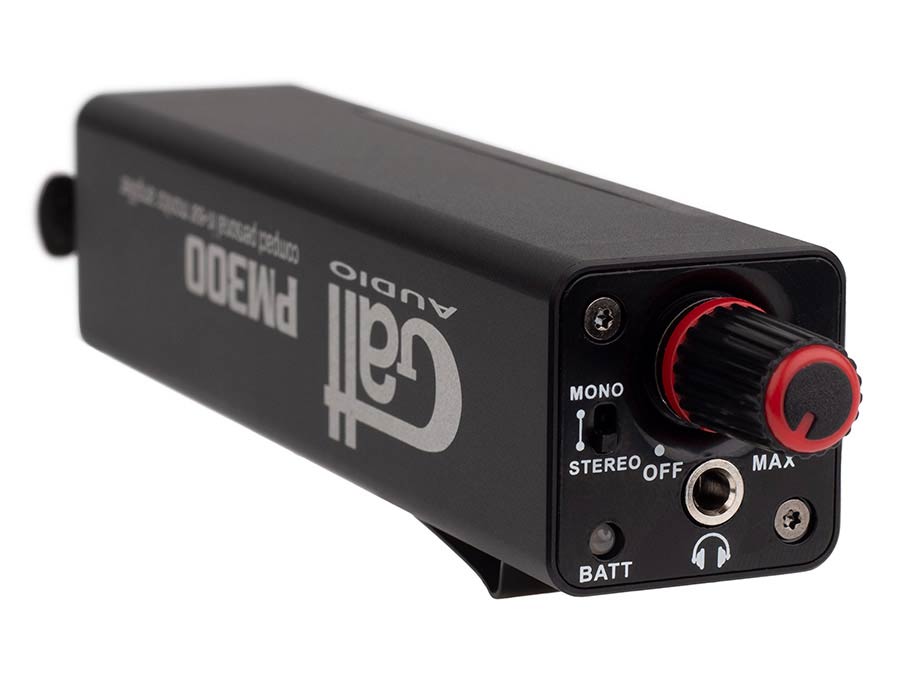

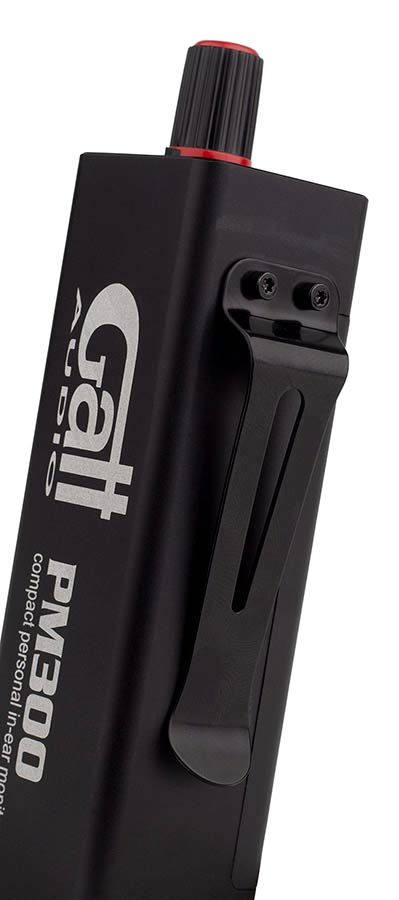

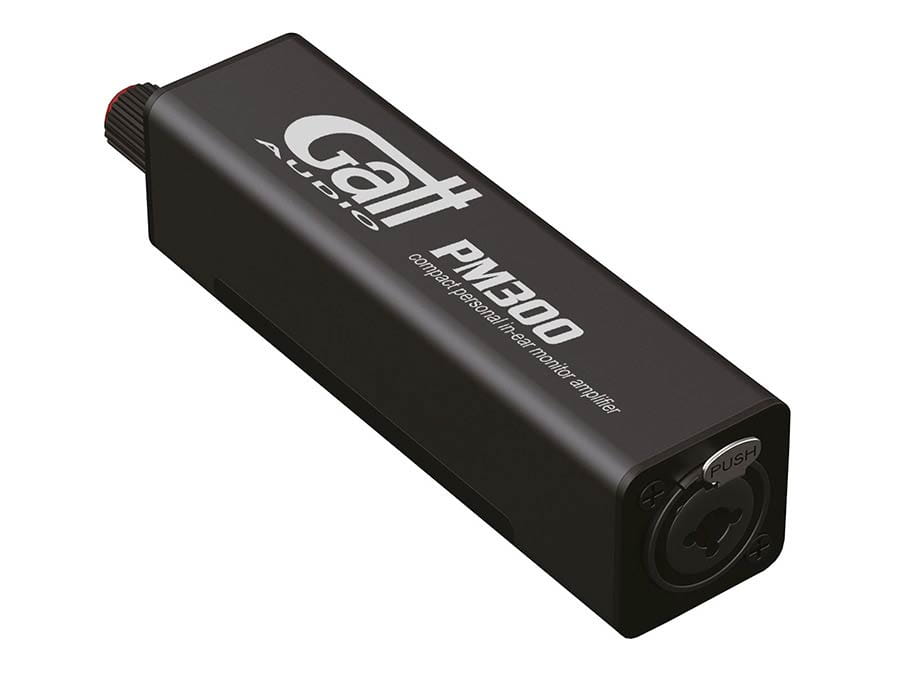

This portable personal in-ear amplification solution features an ultra-compact design with a strong yet lightweight aluminium housing, plus features like the easy clip-on belt clip make this accessible and adjustable to suit any instrument or player! The convenient combo-jack has a locking mechanism to prevent accidental disconnections and is universally suitable for use with both XLR and TRS jacks. The stereo/mono source switch allows you to select the source signal type, and the inbuilt volume control puts you in charge of your own mix level and ensures you get a crystal-clear mix, whatever the performance. Plus, with a 3.5mm stereo output, you can easily connect your own favourite IEMs, earphones, or monitoring headphones for use with the PM300!

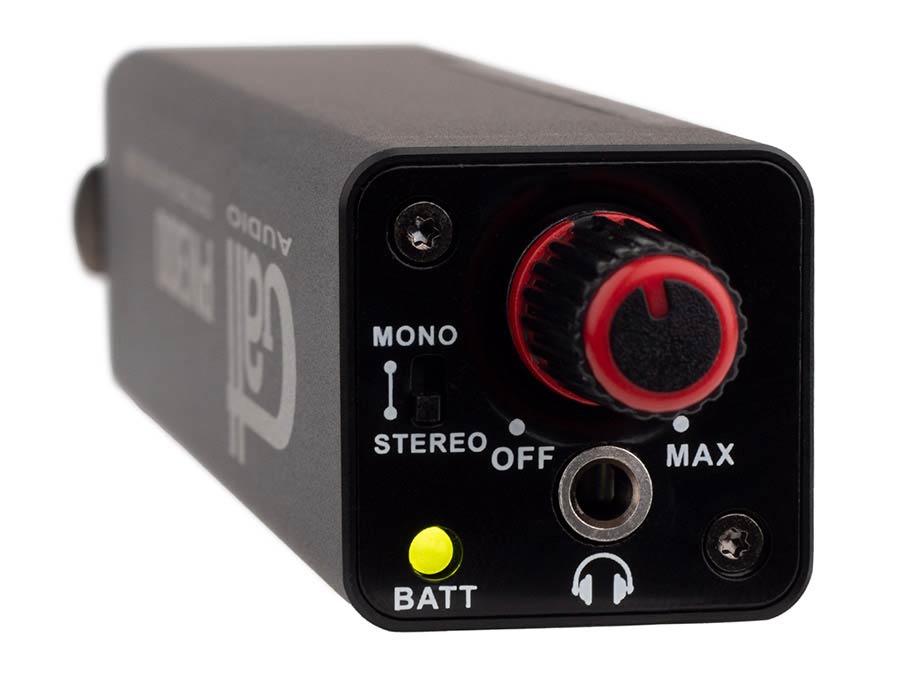

The level control acts as your power ON/OFF, and the LED power indicator is bright enough for any stage! With up to 12 hours of continuous use from just 2x AAA batteries, this long-life and compact unit is a must for the front pocket of any gig bag.


Specifications

Input Connections: locking dual XLR/TRS with switchable mono/stereo input
Output Connections: 3.5mm / 1/8” Stereo Output
Battery Life: 12 Hours

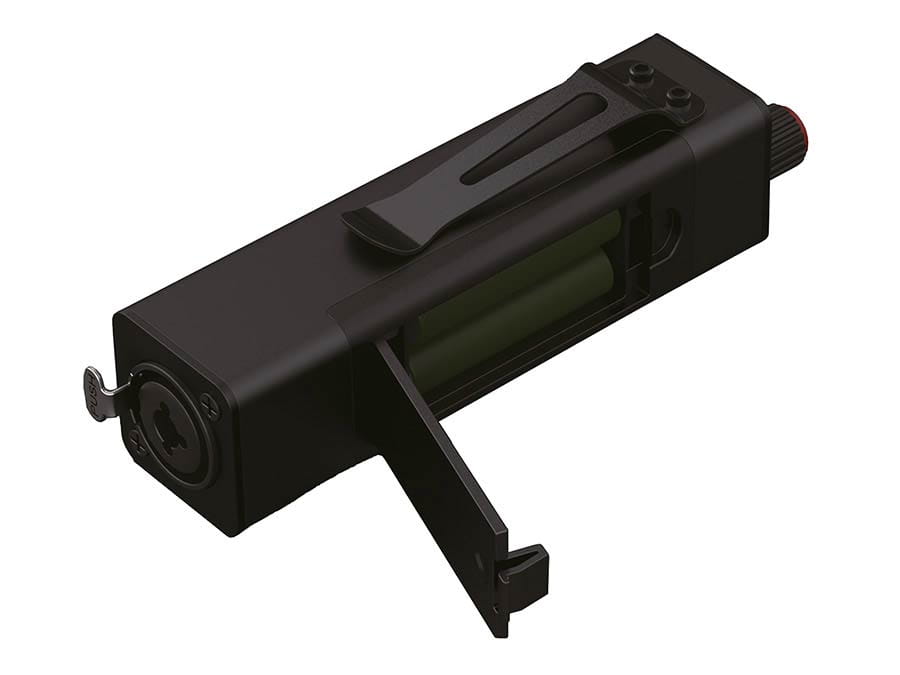

Power Requirements: 2x AAA batteries (included)
Power on LED indicator

Output:
Type: 1/8"TRS, stereo
Impedance: <0.1 Ohms
Max. output: 2 x 110 mW @ 16 Ohms

Input: XLR / 1/4" locking combo jack

Dimensions (mm): 132 x 33 x 38
Weight: 140 g (0.3 lbs)


Intended Use:

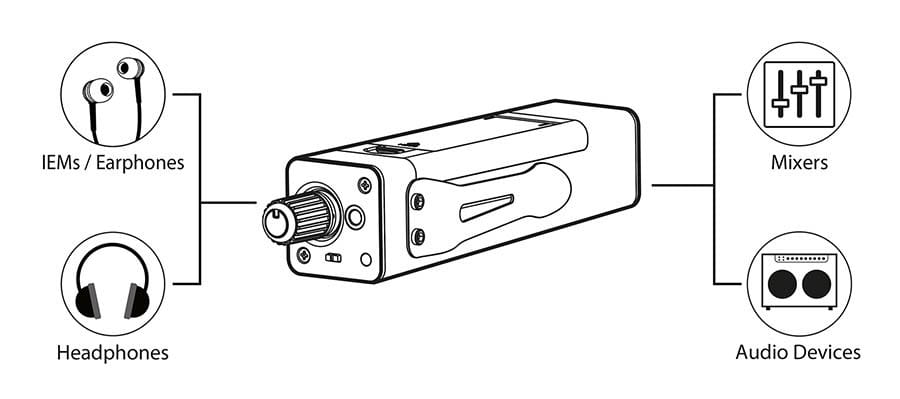

This device is designed to cater to musicians seeking an affordable and dependable solution for in-ear monitoring. It serves effectively in two primary scenarios:

- Mono Setup: Utilize an XLR to XLR cable, establishing a direct connection from the AUX output of a mixing console.
- Stereo Setup: Employ a TRS to TRS stereo jack cable, which can be linked to any headphone or stereo monitor output on a mixing console.

We strongly advise against using alternative connections, as doing so might compromise the device's lifespan and could potentially void the warranty of the PM300.
