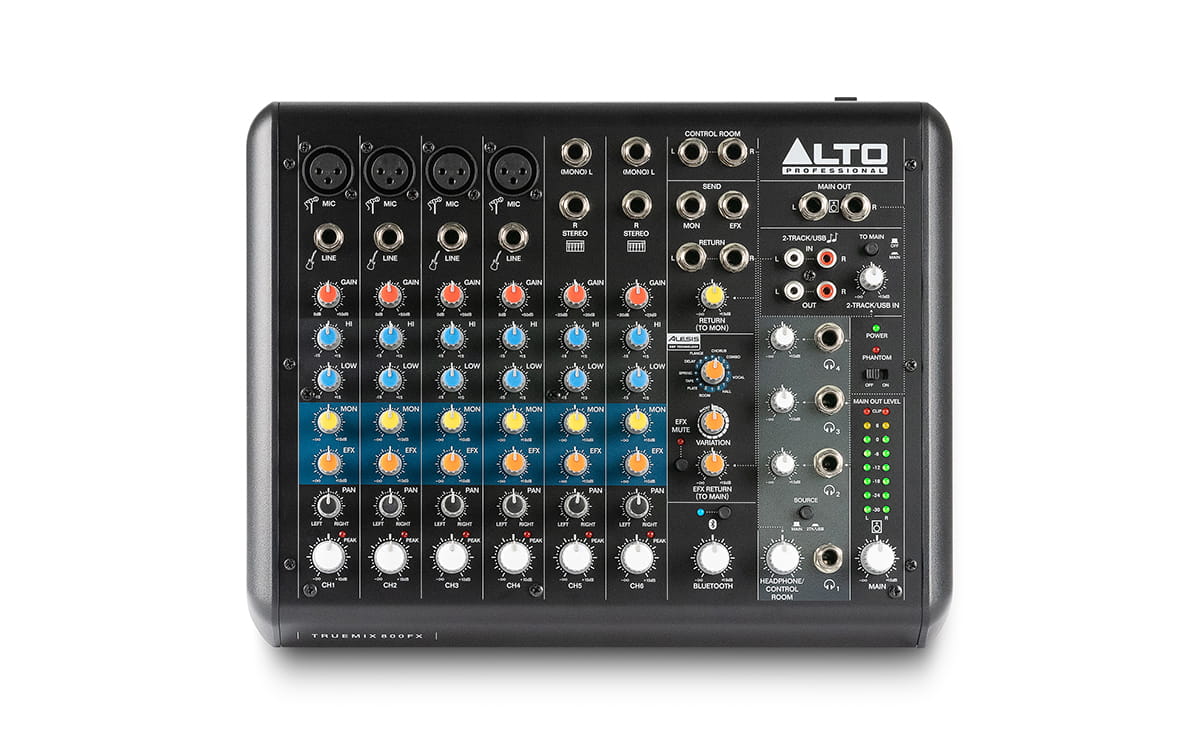

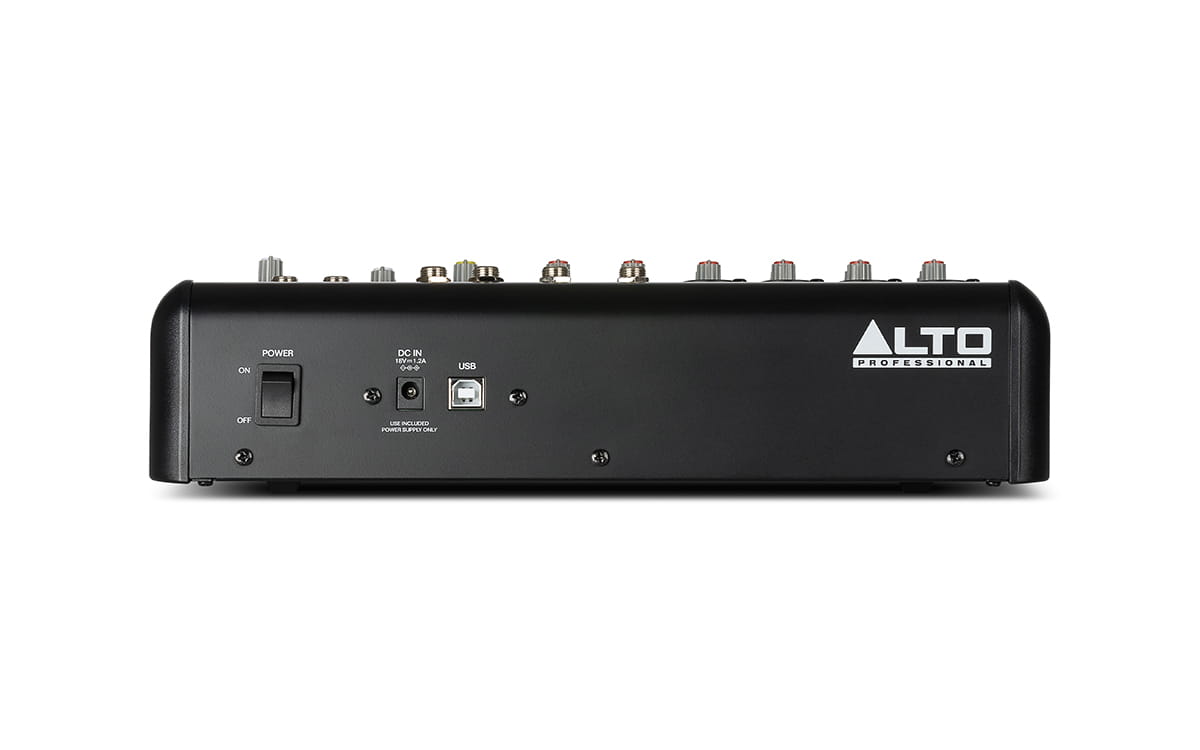

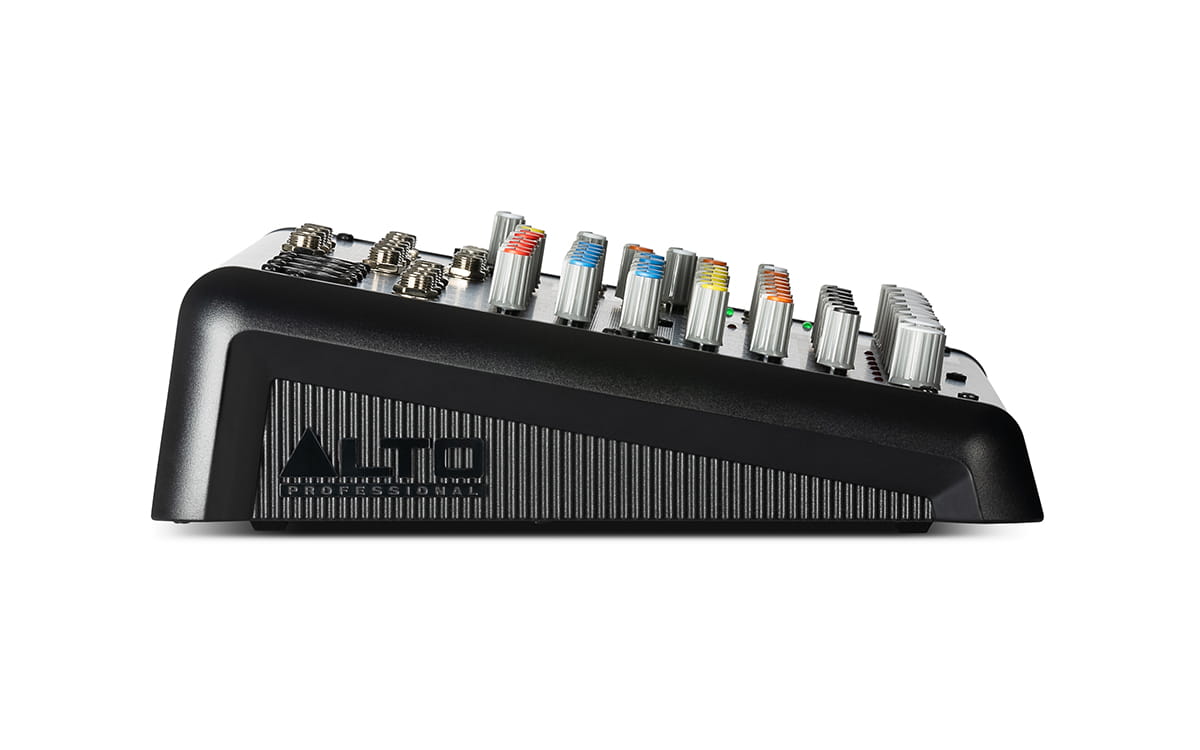

Alto Truemix 800FX mikser audio

Alto Truemix 800FX mikser audio.

• USB I/O for audio playback and stereo recording
• Dedicated bluetooth channel with mix-minus return for feedback-free phone pairing
• Four headphone outputs with independent volume control
• 16 built-in Alesis multi-fx with dedicated return channel
• 1/4” Main, Tape, and AUX outputs
• Four mic input channels with phantom power and balanced line inputs
• Two stereo input channels with balanced 1/4” TRS jacks
• Two-band EQ on all channels
• 2-track inputs w/ assignable routing: main mix or headphone out
• Eight-segment LED VU meter for precise level monitoring
• Extra knob caps included in the box for added customization




  TECH INFORMATION

  Frequency Response	All inputs: 20 Hz – 22 kHz (±1 dB)
  THD+N (Total Harmonic Distortion)	All inputs: < 0.005% (@ 4 dBu, 1 kHz)
  Gain Range	Mic inputs (Channels 1-2): 0 – 50 dB Line inputs (Channels 1-2): 15 dBu – 35 dBu Line inputs (Channels 3-6): -20 dBu – +20 dBu
  Max Voltage Gain	70 dB (MIC INPUT to MAIN MIX OUTPUT) 80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT) 60 dB (MIC INPUT to MON SEND)
  SNR (Signal-to-Noise ratio)	All inputs: > 110 dBu
  Crossover Frequency	Adjacent inputs: < -80 dB @ 1 kHz Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right)
  Phantom Power	+45 ~ +49V with switch control
  Impedance	Mic inputs: 3.9 kΩ All other inputs: > 10 kΩ Aux outputs: 1 kΩ All outputs: 120 Ω
  Equalization	High: ±15 dB @ 12 kHz Low: ±15 dB @ 80 Hz
  Bluetooth	Profile: A2DP Module: Bluetooth 5.0 Operating Frequency: 2402 MHz – 2480 MHz Range: 100 ft. / 30.5 m
  Connectors	(6) 1/4” (6.35 mm) TRS outputs (6) 1/4” (6.35 mm) TRS stereo L/R inputs (4) 1/4" (6.35 mm) TRS headphone outputs (4) 1/4" (6.35 mm) TRS mono inputs (1) Standard RCA L/R input (1) Standard RCA L/R output (4) XLR inputs (1) USB type-B input (1) DC power input
  Controls	(1) Power switch (15) volume control knobs (1 per input, 1 return, 1 EFX return, 1 2-track/USB in, 4 headphone outs, 1 Bluetooth, 1 main) (6) Stereo pan control knobs (1 per input) (6) Mon volume control knobs (1 per input) (6) EQ Low control knobs (1 per input) (6) EQ Hi control knobs (1 per input) (6) Gain control knobs (1 per input) (4) Buttons (1-EFX mute, 1 Bluetooth, 2 Source Select) (1) Horizontal sliding switch
  Indicators	(1) Power LED (6) Peak LEDs (1) Phantom LED (16) Main Out Meter LEDs (1) Bluetooth LED
  Power	Connection: DC Voltage: 18V, 1.2A Consumption: 18W
  Dimensions (width x depth x height)	2.0” x 9.4” x 3.1” 305 x 238.5 x 79 mm
  Weight	4.5 lbs. 2.04 kg
