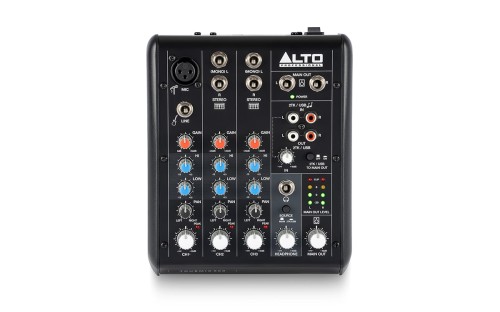

Alto Truemix 500 mikser audio

Alto Truemix 500 mikser audio.

• USB I/O for audio playback and stereo recording
• 1/4” Main, Tape, and Headphone outputs
• Mic input channel with 18v phantom power and balanced line input
• Two stereo input channels with balanced 1/4” TRS jacks
• Two-band EQ on all channels
• 2-track inputs w/ assignable routing: Main Mix or Headphone Out
• Extra knob caps included in the box for added customization



  TECH INFORMATION

  Frequency Response	All inputs: 20 Hz – 22 kHz (±1 dB)
  THD+N (Total Harmonic Distortion)	All inputs: < 0.005% (@ 4 dBu, 1 kHz)
  Gain Range	Mic inputs (Channel 1): 0 – 44 dB Line input (Channel 1): 12 – 30 dBu Line inputs (Channels 2/3): 0 dBu
  Max Voltage Gain	74 dB (Mic Input to Main Out and 2TK Output) 80 dB (Mic Input to Phones Output) 30 dB (Line Input to Main Out)
  SNR (Signal-to-Noise ratio)	All inputs: > 110 dBu
  Impedance	Mic inputs: 3.9 kΩ All other inputs: > 10 kΩ 2TK output: 1 kΩ All other outputs: 120 Ω
  Crosstalk	Adjacent inputs: < -80 dB @ 1 kHz Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channel 1, panned hard left or right)
  Equalization	High: ±15 dB @ 12 kHz Low: ±15 dB @ 80 Hz
  Connectors	(2) 1/4” (6.35 mm) TRS outputs (2) 1/4” (6.35 mm) TRS stereo L/R inputs (1) 1/4" (6.35 mm) TRS headphone output (1) 1/4" (6.35 mm) TRS mono input (1) XLR input (1) Stereo RCA L/R input (1) Stereo RCA L/R output (1) USB type-B input (1) DC power input
  Controls	(1) Power switch (6) Volume control knobs (1 per input and output) (3) Gain control knobs (1 per channel) (3) EQ Hi control knobs (1 per channel) (3) EQ Low control knobs (1 per channel) (3) Stereo pan control Knobs (1 per channel) (2) Locking switch buttons
  Indicators	(1) Power LED, (3) Peak LEDs, (8) Main Out meter LEDs
  Main Mix	Main output: (2) 1/4" (6.35 mm) balanced TRS, +22 dBu max output 2TK output: (2) unbalanced RCA, 0 dBu max output Headphone output: (1) stereo 1/4" (6.35 mm) TRS, 160 mW @ 32 Ω
  Power	Connection: DC Voltage: 18V, 500 mA Consumption: 9 W
  Dimensions (width x depth x height)	6.3" x 7.6" x 2.6" 159.5 mm x 193 mm x 66 mm
  Weight	2.0 lbs. 0.9 kg
